Perfect FSK Series – Foil-Scrim-Kraft Facing

1. Product Overview

Perfect P-Kraft™ (FSK) is the industry-standard insulation facing designed by laminating reflective aluminum foil onto a dimensionally stable kraft paper base. Reinforced with a high-strength fiberglass scrim network, this tri-layer laminate serves as an exceptional radiant barrier and vapor retarder for commercial and residential HVAC systems.

Aluminum Foil Reinforced Kraft (FSK) is a professional-grade insulation facing material.
It is suitable for online lamination of glasswool, rockwool. Thicker heat-sealable PE. No need applying extra adhesive. Good corrosion resistance.
The scrim can be tri-way fiberglass scrim (8*10) or two-way fiberglass scrim (10*10, 6*12, 12*12).

2. The 3-Layer Integrated Structure

We emphasize the integrity of our lamination process, ensuring the layers function as a single, durable shield:

• Layer 1: High-Purity Aluminum Foil (Facing)

  • Reflects 95% of radiant heat, providing optimal thermal efficiency for ductwork and building insulation.

• Layer 2: Specialized Adhesive (PE or FR Glue)

  • Utilizes high-bonding agents (including Flame Retardant options) to ensure a stable, long-term bond that resists delamination from -29°C to 66°C.

• Layer 3: Reinforced Scrim & Kraft Paper (Base)

  • Combines a strong Tri-way or Two-way fiberglass scrim with 50g/m² or 60g/m² natural kraft paper to provide superior tensile strength and a robust moisture barrier.

3. Features & Advantages

3-Layer Composite Structure: Combines aluminum foil (radiant barrier), fiberglass scrim (reinforcement), and kraft paper (flame retardant backing).

Thermal & Vapor Control: Reflects up to 97% of radiant heat while providing an effective vapor barrier.

Fire Safety Compliance: Meets ASTM E84 Class A/Class 1 fire rating standards for interior applications.

Tear & Puncture Resistant: Reinforced scrim provides durability during handling and installation.

Easy Installation: Flexible backing adapts to ducts and surfaces; compatible with standard adhesives and tapes.

Reliable Vapor Shield: With a water vapor permeability as low as 1.15 ng/N.s, it effectively prevents condensation from infiltrating the insulation core.

High Burst Strength: The reinforced scrim network provides a burst strength of up to 30N, ensuring the facing remains intact during rigorous installation.

Flame Retardant Options: Our FSK-R7160A model utilizes FR-grade kraft paper and adhesive to meet strict fire safety standards for commercial projects.

Dimensional Stability: The heavy-duty kraft paper base ensures the material remains flat and easy to handle, reducing job-site waste.

Related News: Proven Excellence: OPERFECT™ FKSV-75034B Aluminum Foil Facing – The Choice of Global Industrial Giants – Manufacturer of foil lamination, Roofing & walling, Insulation & acoustic, Fiberglass .

OPERFECT™ FSK-7150A: The Ultimate Reinforced Aluminum Foil Scrim Kraft Facing for Industrial Insulation – Manufacturer of foil lamination, Roofing & walling, Insulation & acoustic, Fiberglass .

OPERFECT™ MSM: Reinforced Metalized Film — Industrial Strength at Unbeatable Factory Pricing – Manufacturer of foil lamination, Roofing & walling, Insulation & acoustic, Fiberglass .

4. Product Selection Guide

5. Primary Applications

• HVAC Duct Wrapping: The standard choice for facing glass wool, rock wool, and mineral wool duct boards.

• Residential Insulation: Ideal for attic and wall radiant barriers where cost-effectiveness and performance are key.

• Vapor Retarder: Excellent for pipe insulation wrapping in environments requiring a high-integrity moisture seal.

Aluminium Foil Facing for Metal Building Roofing Insulation
Jinan United Perfect Building Materials is the professional maufacture on roofing insulation foil faicngs. Perfect’s foil facings focus on the vapor retarders & reflective heat performance, protect the indoor temperature are stable. Our facings take thespecial formula up to the standard of fire retardant.

Foil Facing for HAVC Duct Insulation
Jinan United Perfect Building Materials Corporation have special formula can supply the fire retardant foil lamination products to the HAVC industriies, the flame retardant and smoke performance also pass the BS476 and ASTM testing.

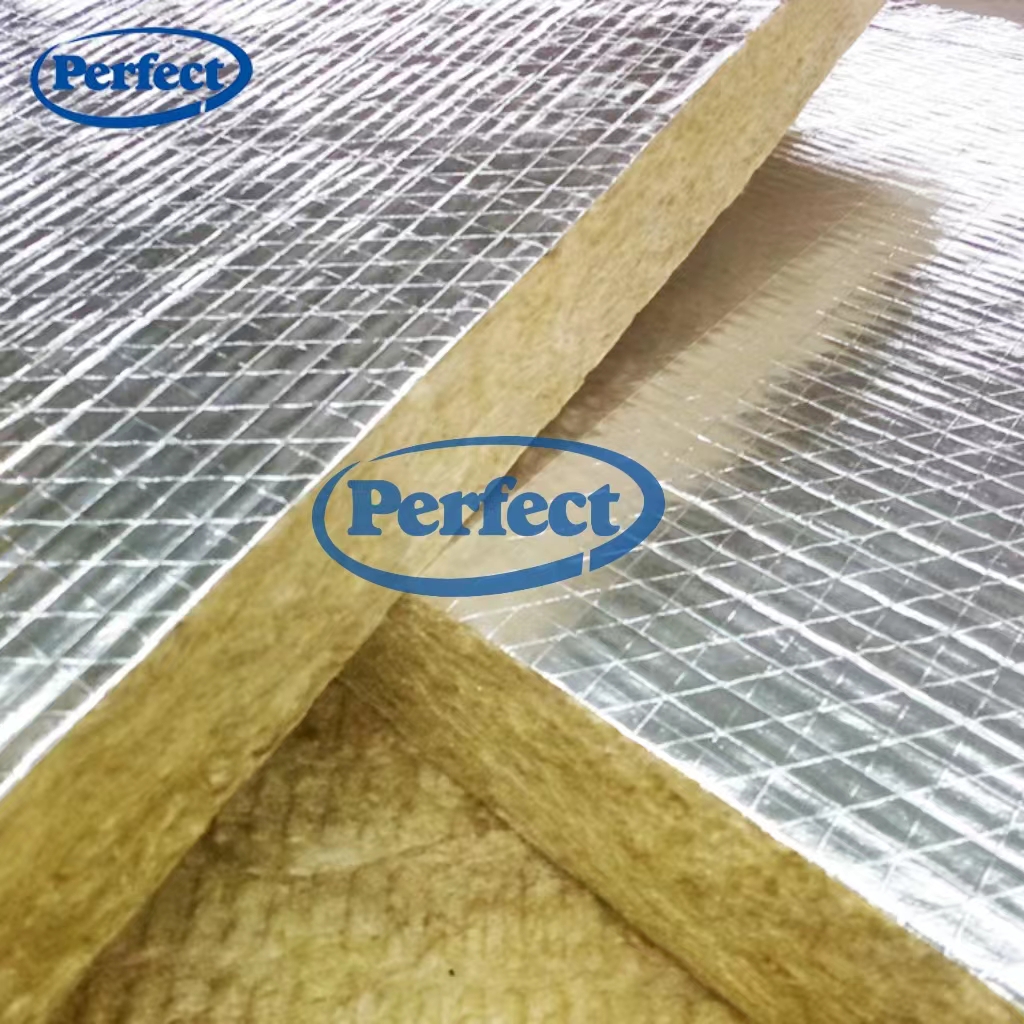

Foil Facing Used for Rockwool, Glasswool, Rubber factories etc.
Jinan United Perfect Building Materials Corporation supply various kind of foil facings to many famous rock wool , glass wool,rubberfoam, ceramic fiber factories in the world, Perfect with the enough production lines can satificate custormer’s diffirent request, also OEM for many competitions.

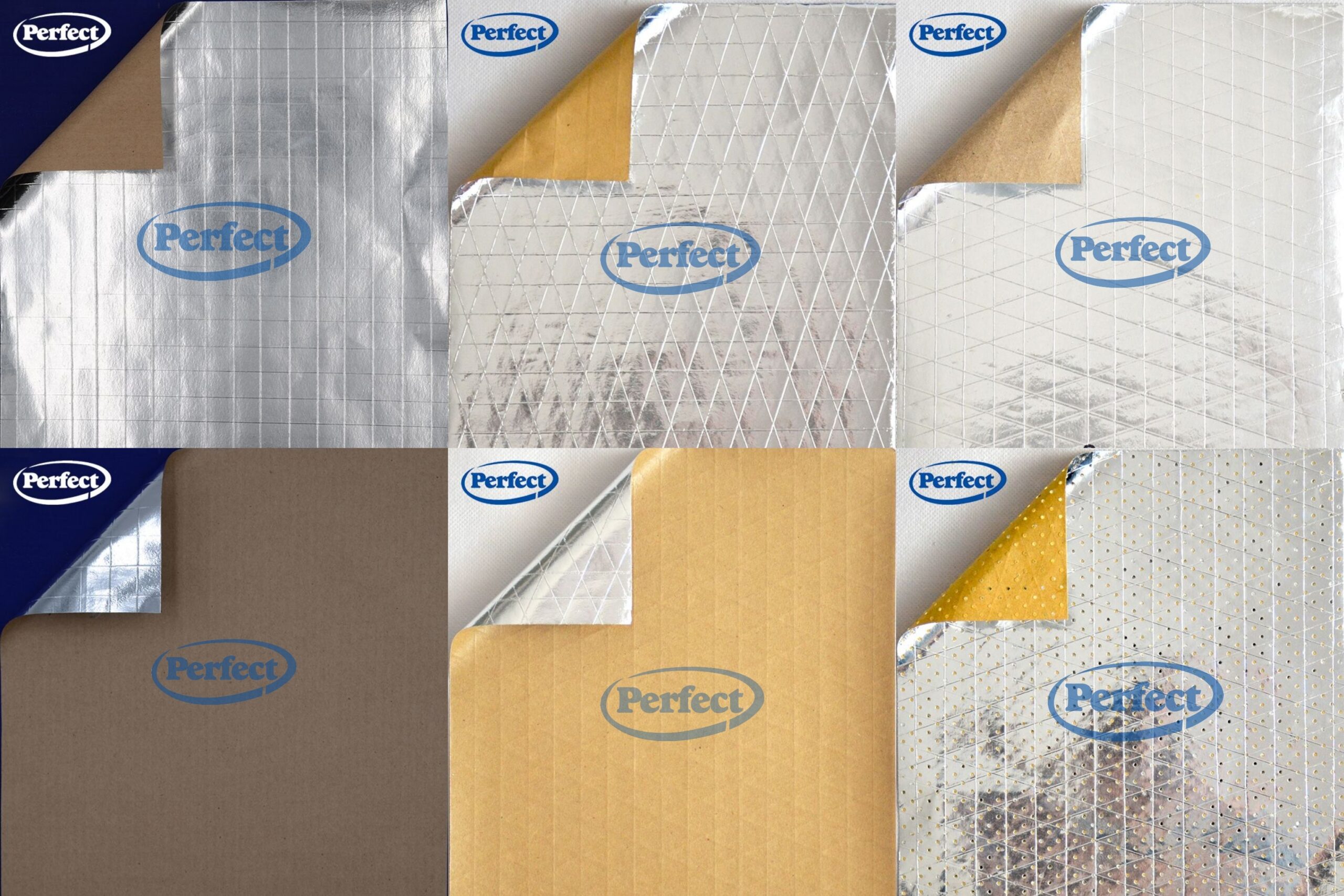

Product Line
