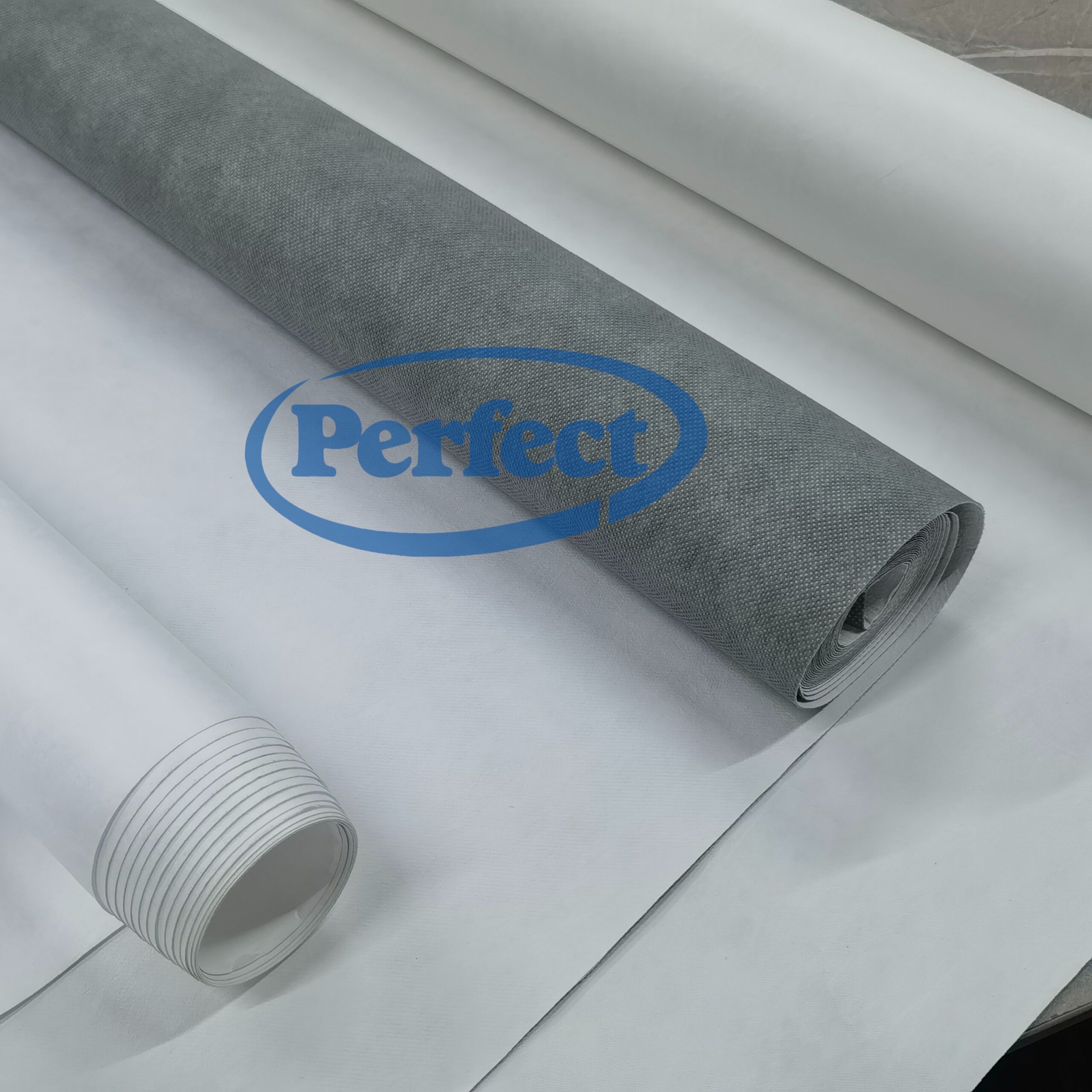

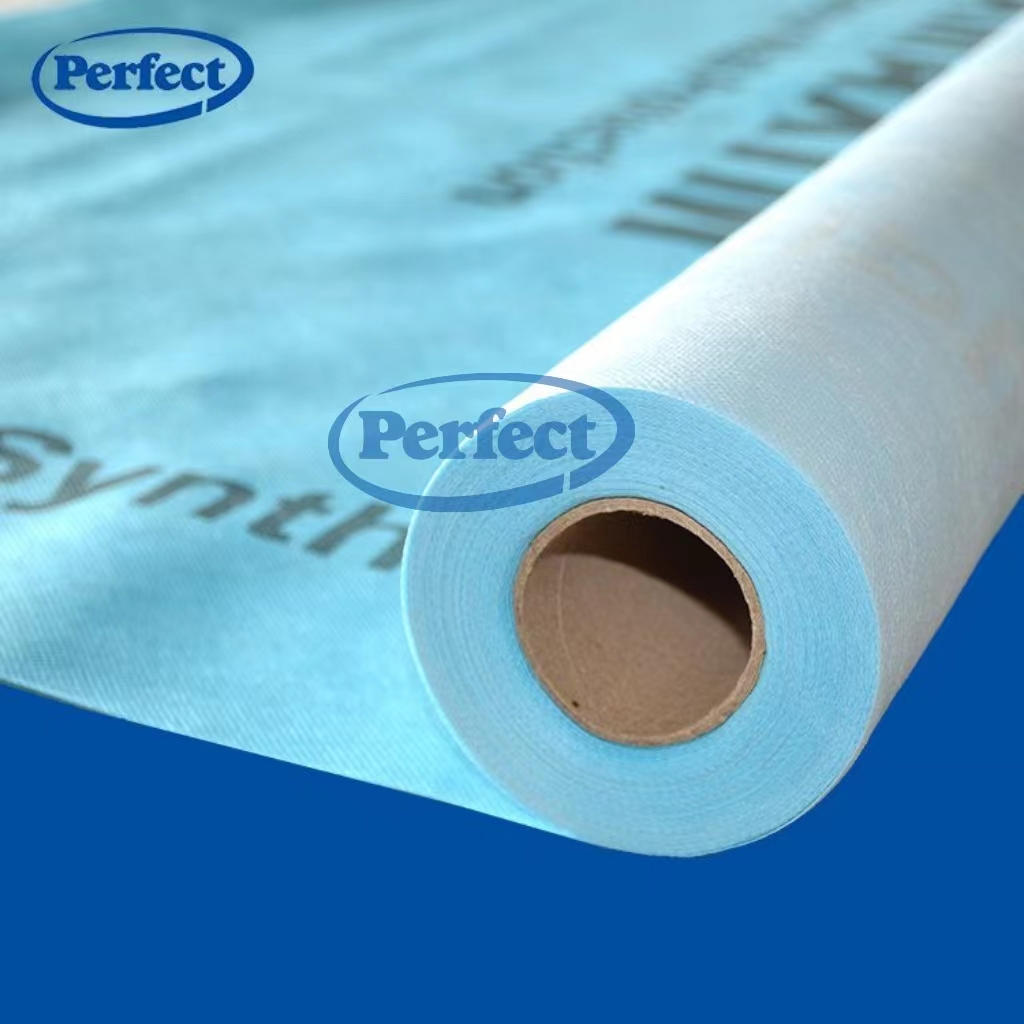

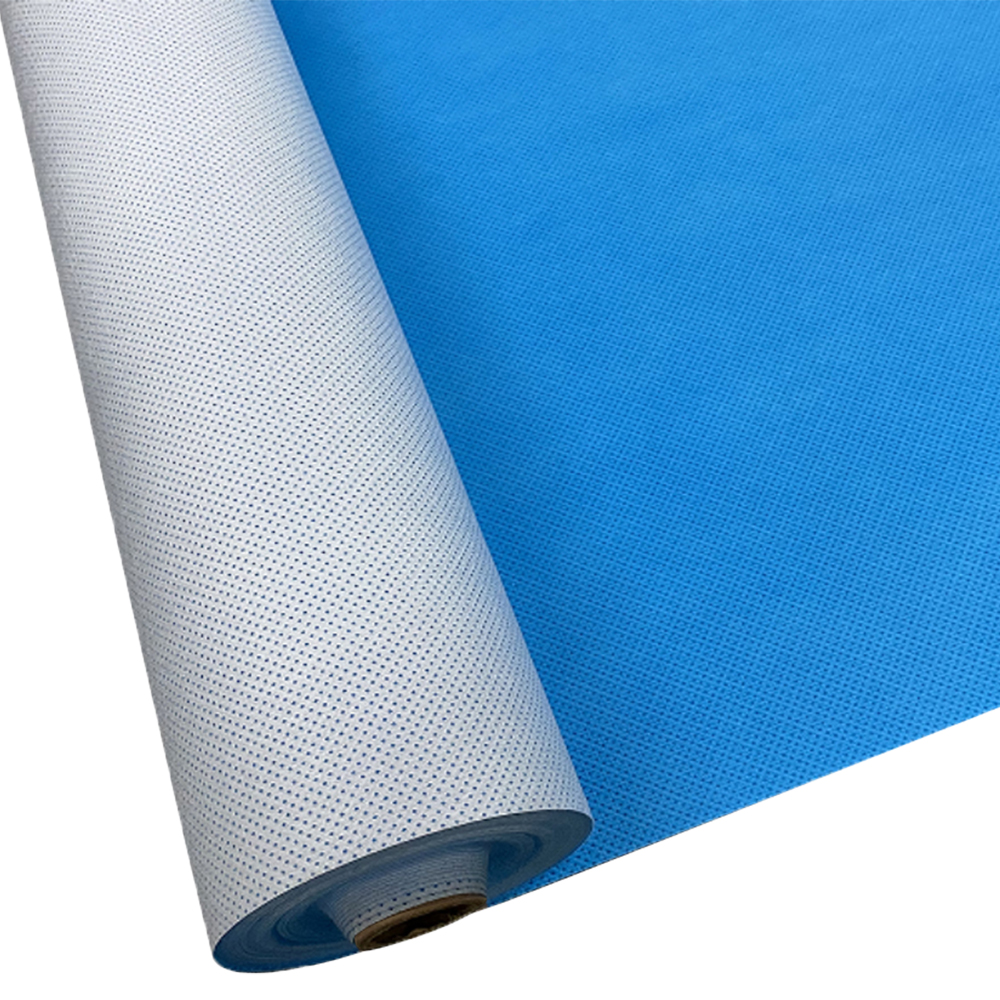

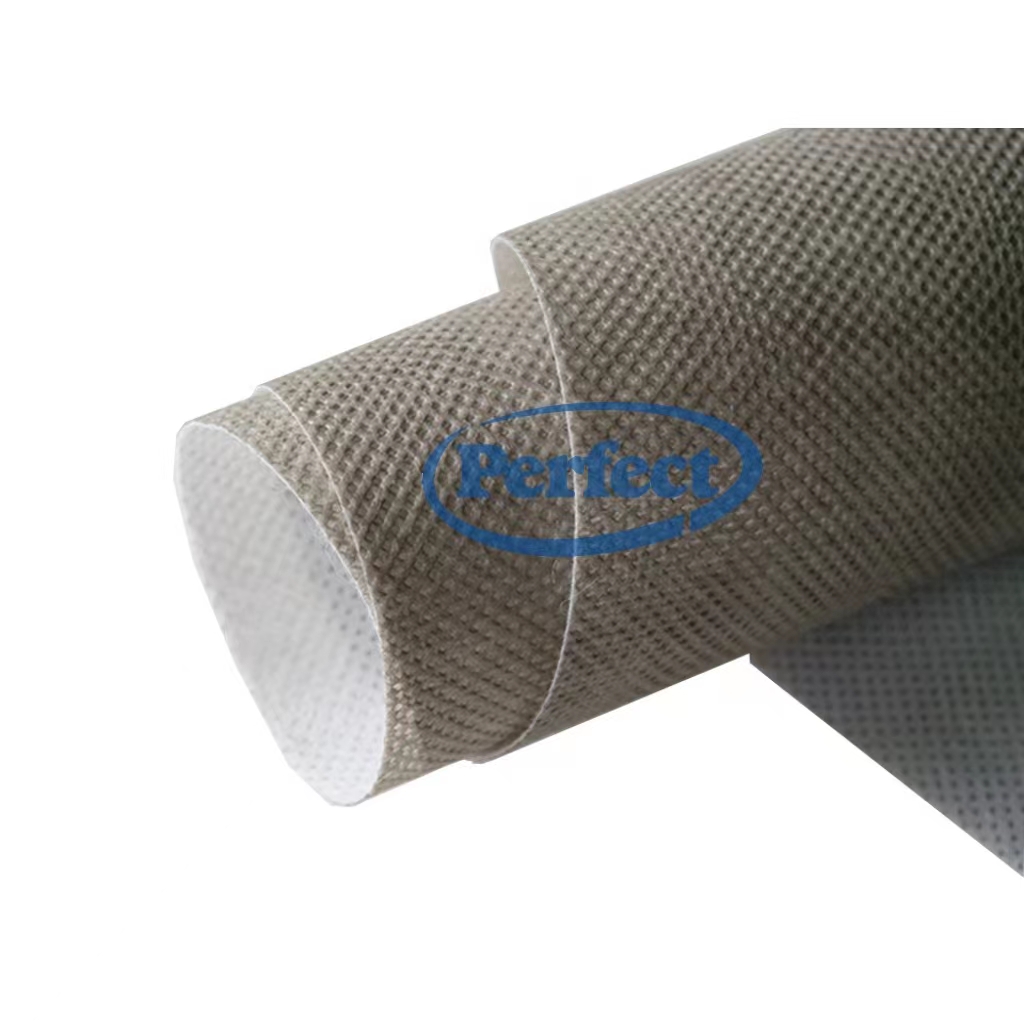

OPERFECT™ Breathable Membrane Perfect breathable membranes have excellent performance on water proof, vapor permeability and UV resistant, which are widely used in construction as roof underlayment and wall membrane. They can prevent duct, water drop from our side, but can allow air to pass through.
🔷 OPERFECT FR-UV Shield 110
Fire Retardant UV Resistant Reinforced Breathable Building Membrane
1. Product Overview
OPERFECT FR-UV Shield 110 is a high-performance reinforced breathable building membrane designed for modern building envelope systems.
It is engineered to provide fire protection, UV durability, and long-term moisture control, making it suitable for demanding roofing and wall applications.
Unlike standard nonwoven fabrics, this product is a functional engineered membrane designed for system-level construction performance.
It is widely applied in Australia, New Zealand, the Middle East, and other high UV exposure regions.
2. Why This Product Matters
Modern buildings face increasing challenges:
Higher UV exposure intensity
Stricter fire safety regulations
Increased risk of condensation in sealed structures
Higher demand for long-term durability
Traditional single-function materials can no longer meet these requirements.
OPERFECT FR-UV Shield 110 is developed to solve these challenges in one integrated membrane layer.
Allows moisture to escape from building structures
Reduces condensation risk in roof and wall systems
Helps maintain insulation performance over time
💪 Mechanical Strength & Durability
Tear strength: > 265 N
Reinforced structure for installation stability
Resistant to construction handling damage
☀️ UV Resistance (Outdoor Exposure Stability)
750 hours UV accelerated aging test
Strength retention ≥ 80% after aging
Minimum strength ≥ 200 N
Suitable for high UV exposure regions and construction phases
5. Applications
OPERFECT FR-UV Shield 110 is designed for:
Metal roofing systems (roof underlayment)
Steel frame and timber frame wall systems
External façade backing layers
Residential housing projects
Commercial and industrial buildings
High UV exposure regions (Australia, Middle East, coastal areas)
6. System Integration
This membrane is designed to work as part of a complete building envelope system:

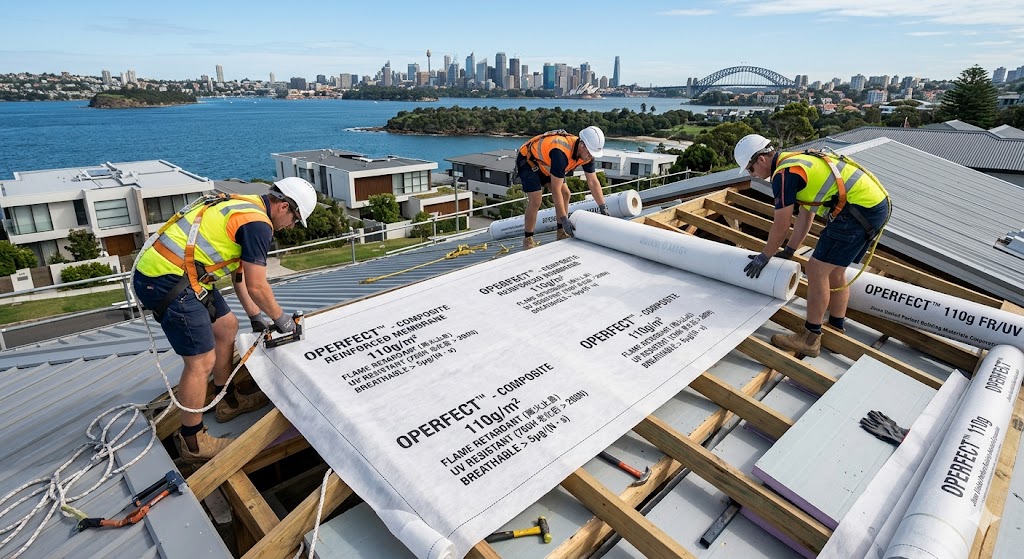

Roofing System:
Metal roofing sheet
Ventilation layer
FR-UV Shield 110
Insulation layer (rock wool / glass wool)
Structural frame

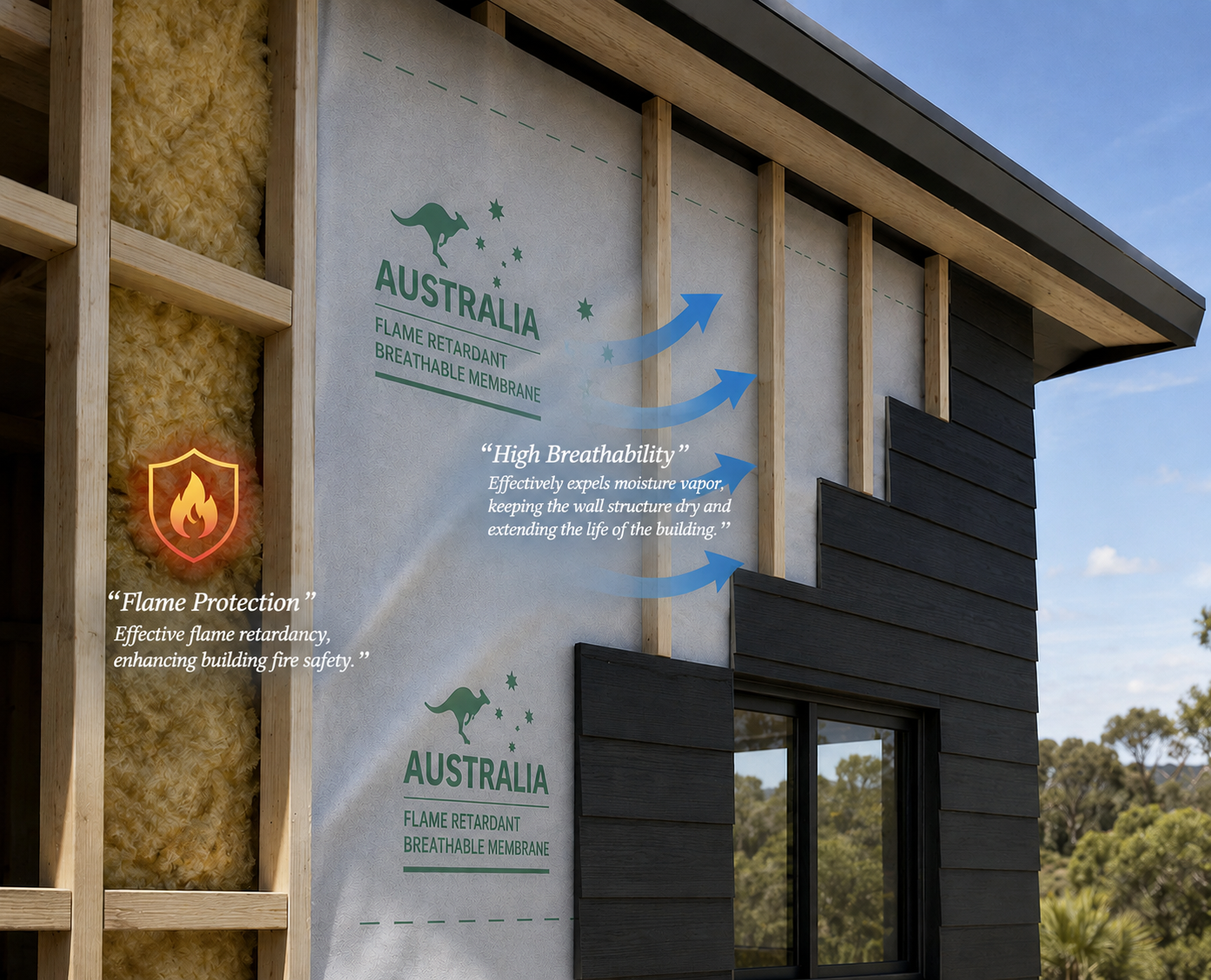

Wall System:
External cladding
Ventilated cavity
FR-UV Shield 110
Rock wool insulation
Structural frame
7. Product Advantages
✔ Fire retardant + UV resistant + breathable in one system layer ✔ Reinforced structure for construction durability ✔ Suitable for harsh climate environments ✔ Designed for international engineering projects ✔ Stable quality for long-term supply ✔ Customizable specifications available
8. Engineering Value
This product helps improve building performance in three key areas:
Reduces condensation risk inside wall and roof systems
Improves durability of insulation materials
Enhances fire safety performance of building envelopes
It is a key component in modern high-performance building envelope systems.
9. Technical Specifications
Weight: 110 g/m²
Vapour Transmission: > 5 μg/(N·s)
Tear Strength: > 265 N
UV Aging Test: 750 hours
Strength Retention: ≥ 80%
Minimum Strength: ≥ 200 N
10. Quality Assurance
Each production batch is strictly tested for:
Mechanical strength
Fire performance
UV aging resistance
Vapour permeability
Ensuring consistent performance for engineering applications.
11. Packaging & Supply
Roll width: Customized
Roll length: Customized
Packaging: PE film / pallet packing
OEM / ODM: Available
Stable long-term supply capability
12. Why Choose OPERFECT
Over 20 years industry experience in building envelope materials
Strong capability in composite material integration
Long-term cooperation with international building material partners
Focus on engineered solutions, not commodity products
Strong customization and technical support capability
13. Inquiry & Contact
To provide accurate quotation and technical solution, please inform us:
Application (roof or wall system)
Target market (Australia / Europe / Middle East etc.)
